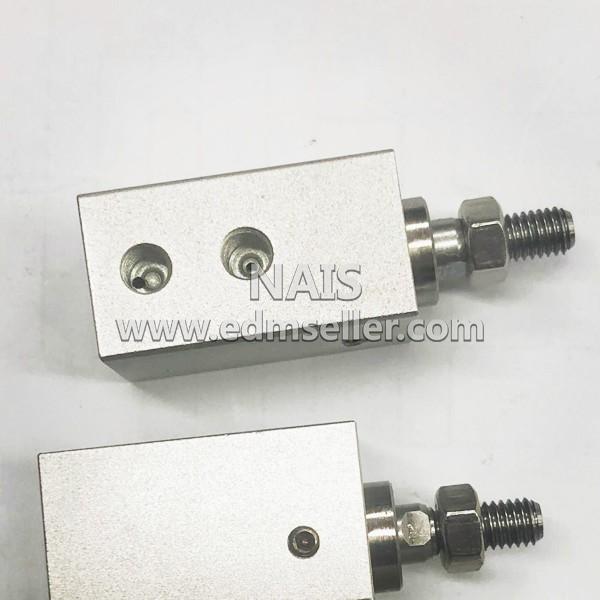

FANUC A97L-0203-0507 Cylinder

 Product Description

◆OEM numbers：A97L-0203-0507

◆Machine type：Fanuc α-0iE with AWF, Fanuc α-1iE with AWF, Fanuc α-C400iA with AWF, Fanuc α-C400iB with AWF, Fanuc α-C600iA with AWF, Fanuc α-C600iB with AWF, Fanuc α-C800iB with AWF

◆Associated parts & OEM number：

A : Lower nozzle

B : Lower Die guide

C : Locknut ring   A98L-00010347#S36-W

D : Locknut  A290-8119-Z777

E : Die guide base  A290-8120-Z763

F : Electrode pin  A290-8119-Z780

G : Electrode pin stopper   A6-SAKT-5X20SUS

H : Insulating seat   A290-8119-Z762

I : Lower jet block   A290-8120-Z764

J : O-ring    A98L-0001-0347#S10-J

K : Lower subdie guide  A290-8110-Y774

L : Non-rotation block   A290-8119-Z785

M : Cylinder base   A290-8120-Z783

N : Cylinder   A97L-0203-0507

O : Insulating shaft  A290-8119-Z784

P : Electrode pin holder 1    A290-8120-Z781

Q : Electrode pin holder 2   A290-8119-Z782

R : Blade spring  A290-8119-Z793
